Cineálacha snáithe BSPP 60 feisteas cóin céime: le nó gan fáinne o-, cónascaire baineann fireann nó swviel.
Tá caighdeán chatalóg feistis BSPP bunaithe ar ISO 8434-6 agus ar BS 5200.
Is iad na snáitheanna do na naisc cóin céime BSPP atá i gcomhréir le ISO 228-1.
Naisc feadán miotalach le haghaidh cumhachta sreabhach hiodrálacha agus úsáid ghinearálta.
Is féidir le Jiayuan feistis chruach dhosmálta BSP a thairiscint freisin, feistis do phíopaí bsp práis, feistis píobáin bsp srl.

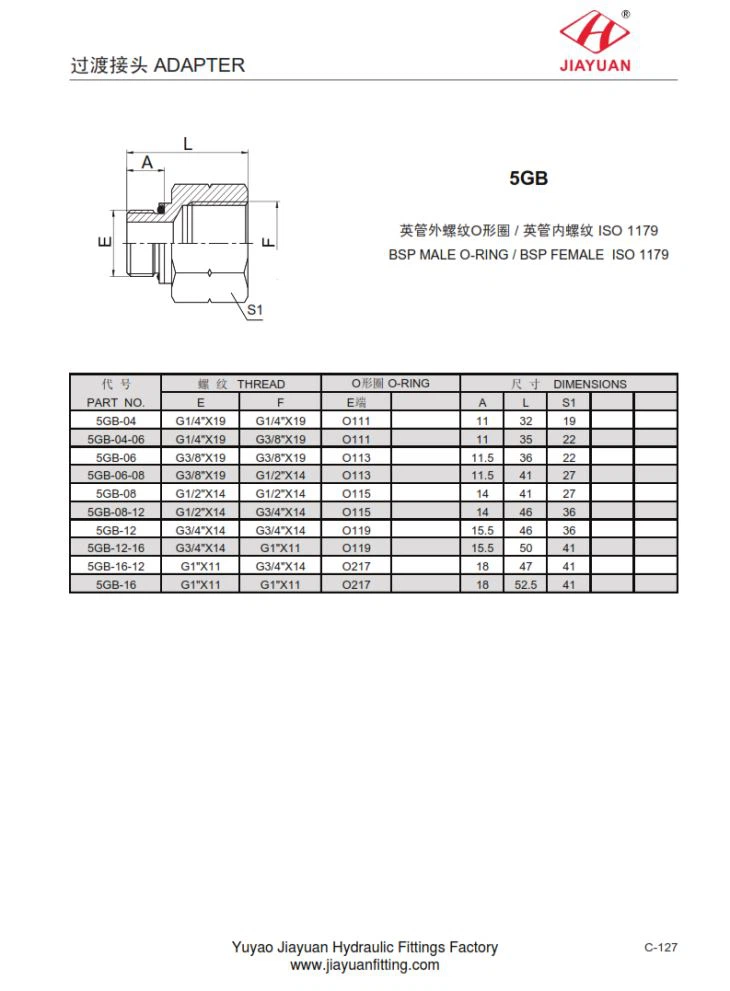

5GB BSP R-RING / BSP FEMALE ISO 1179 toisí cónascaire fheistiú mar seo a leanas:
PA RT N O. | T HR EA D | O R- RING | DIM E N S I N | |||
E | F | E | A | L | S 1 | |
5 G B - 04 | G 1/4 " X 19 | G 1/4 " X 19 | O 111 | 11 | 32 | 19 |
5 G B - 04 - 06 | G 1/4 " X 19 | G 3/8 " X 19 | O 111 | 11 | 35 | 22 |
5 G B - 06 | G 3/8 " X 19 | G 3/8 " X 19 | O 113 | 11.5 | 36 | 22 |
5 G B - 06 - 08 | G 3/8 " X 19 | G 1/2 " X 14 | O 113 | 11.5 | 41 | 27 |
5 G B - 08 | G 1/2 " X 14 | G 1/2 " X 14 | O 115 | 14 | 41 | 27 |
5 G B - 08 - 12 | G 1/2 " X 14 | G 3/4 " X 14 | O 115 | 14 | 46 | 36 |
5 G B - 12 | G 3/4 " X 14 | G 3/4 " X 14 | O 119 | 15.5 | 46 | 36 |
5 G B - 12 - 16 | G 3/4 " X 14 | G 1 " X 11 | O 119 | 15.5 | 50 | 41 |
5 G B - 16 - 12 | G 1 " X 11 | G 3/4 " X 14 | O 217 | 18 | 47 | 41 |
5 G B - 16 | G 1 " X 11 | G 1 " X 11 | O 217 | 18 | 52.5 | 41 |
