Feistis DIN Inoiriúnaithe
video
Feistis DIN Inoiriúnaithe

Feistis DIN Inoiriúnaithe

Is é an deireadh inchoigeartaithe graí snáithe fireann, is cnónna glas, washer cúltaca, fáinní oinn agus fáinne coinneála é. Is é atá i bhfeistis DIN ná deireadh caighdeánach de fheistis 24 deg cón agus fáinne fáinne gearrtha chun píopa cruach, cuibheoirí nó cóimeáil píobáin a nascadh, is gnách go bhfaightear feistis ghraí inchoigeartaithe ar Elbow, Tee agus Cross Fittings chun treoshuíomh cuí na bhfeisteas a cheadú.
Glaoigh Linn
Chatear nu'bya
Cur síos

Sainmhíniú: Graí snáithe fireann is ea an taobh inchoigeartaithe, is cnónna glas, washer cúltaca, fáinní oighir agus fáinne coinneála é. Is é atá i bhfeistis DIN ná deireadh caighdeánach de fheistis 24 deg cón agus fáinne fáinne gearrtha chun píopa cruach, cuibheoirí nó cóimeáil píobáin a nascadh, is gnách go bhfaightear feistis ghraí inchoigeartaithe ar Elbow, Tee agus Cross Fittings chun treoshuíomh cuí na bhfeisteas a cheadú.


Modhanna chun deireadh a chur le graí inchoigeartaithe: Déanfar é a chur i dtoll a chéile le cnónna glas, ais-nite, séalaithe le fáinne O-fáinne nó fáinne coinneála O-fáinne +. Tá ceithre chaighdeán i gcalafort ina saothraítear rónta mar seo a leanas:

Snáithe méadrach + O-fáinne + O-fáinne a choinneáil (ISO 9974)

Snáithe méadrach + O-fáinne ISO 6149

Snáithe NA / UNF + O-fáinne ISO 11926 SAE J1926 ORB

BSPP snáithe + fáinne O-fáinne + fáinne coinneála (ISO 1179)

Déanfar tástálacha seasmhachta pléasctha agus timthrialla (impulse) i gcomhréir le ISO 19879.


íomhá001íomhá003
íomhá002


Déan teagmháil linn trí r-phost le toisí, brú oibre, feidhmíocht, cothromaíocht agus oiriún leicneáin deireadh stodaí inchoigeartaithe, O-fáinní.


1. Feistis Elbow Inoiriúnaithe 1CH9 / 1DH9

24 dheireadh an choin / Deireadh Graí Inoiriúnaithe O-fáinne ISO 6149 Nó fáinne O-+ fáinne Coinneála ISO 9974

1CH4 / 1DH4 do léiriú cruth 45deg uillinn

íomhá007

íomhá008

CUID UIMH.

TRÍ

D1

O RING

TOISÍ

MPa

E

F

TUBE OD

l1

L1

L2

S1

S2

S3

1CH9-12-10OG

M12X1.5

M10X1

6

O08.1X1.6

13

28

26.5

11

14

14

31.5L

1CH9-14-12OG

M14X1.5

M12X1.5

8

O09.3X2.4

15.5

30.5

32

14

17

17

1CH9-16-14OG

M16X1.5

M14X1.5

10

O11.3X2.4

17.5

32.5

34

16

19

19

1CH9-18-16OG

M18X1.5

M16X1.5

12

O13.3X2.4

19

34

36

19

22

22

1CH9-22-18OG

M22X1.5

M18X1.5

15

O15.3X2.4

22

37

39.5

22

27

24

1CH9-26-22OG

M26X1.5

M22X1.5

18

O19.3X2.4

25.5

42

43.5

27

32

27

1CH9-30-27OG

M30X2

M27X2

22

O23.5X3.0

29.3

45.8

50

30

36

32

16L

1CH9-36-33OG

M36X2

M33X2

28

O29.5X3.0

33.3

49.8

54

36

41

41

1DH9-14-12OG

M14X1.5

M12X1.5

6

O09.3X2.4

17.5

32.5

32

14

17

17

63S

1DH9-16-14OG

M16X1.5

M14X1.5

8

O11.3X2.4

18.7

33.7

34

16

19

19

1DH9-18-16OG

M18X1.5

M16X1.5

10

O13.3X2.4

19.5

36

36

19

22

22

1DH9-20-18OG

M20X1.5

M18X1.5

12

O15.3X2.4

19.5

36

37

19

24

24

1DH9-22-20OG

M22X1.5

M20X1.5

14

O17.3X2.4

23

41

40

22

27

27

1DH9-24-22OG

M24X1.5

M22X1.5

16

O19.3X2.4

24

42

37.5

24

30

27

1DH9-30-27OG

M30X2

M27X2

20

O23.5X3.0

28.3

49.8

50

30

36

32

40S

1DH9-36-33OG

M36X2

M33X2

25

O29.5X3.0

32.8

56.8

54

36

46

41

1DH9-42OG

M42X2

M42X2

30

O38.5X3.0

36.2

62.7

57.2

41

50

50

Nóta: Sa chás go bhfuil spéis agat an cuibheoir a ordú go hiomlán le fáinne gearrtha agus cnó, is gá iarmhír "RN" a chur isteach i ndiaidh ár gcuid uimh. mar shampla 1DH9-20-18OG / RN.

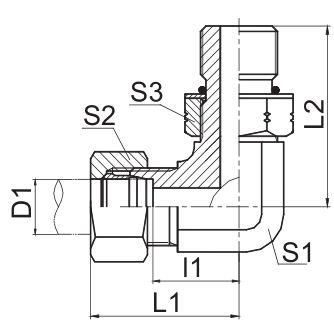

2. Feistis Elbow Inoiriúnaithe 1CO9 / 1DO9

24 dheireadh an choin / Deireadh Graí Inoiriúnaithe O-fáinne ISO 11926

1CO4 / 1DO4 le haghaidh tásc 45 céim an uillinn

íomhá011

íomhá012

CUID UIMH.

TRÍ

TUBE OD

TOISÍ

MPa

E

F

D1

l1

L1

L2

S1

S2

S3

1CO9-12-04OG

M12X1.5

7/16 "X20

6

13

28

27.2

11

14

17

31.5L

1CO9-14-06OG

M14X1.5

9/16 "X18

8

15.5

30.5

31.8

14

17

19

1CO9-16-06OG

M16X1.5

9/16 "X18

10

17.5

32.5

33.3

16

19

19

1CO9-18-08OG

M18X1.5

3/4 "X16

12

19

34

37.5

19

22

24

1CO9-22-10OG

M22X1.5

7/8 "X14

15

22

37

44

22

27

27

1CO9-22-08OG

M22X1.5

3/4 "X16

15

22

37

39.5

22

27

24

1CO9-26-12OG

M26X1.5

1.1 / 16 "X12

18

25.5

42

51

27

32

32

1CO9-30-12OG

M30X2

1.1 / 16 "X12

22

29.3

45.8

53.5

30

36

32

16L

1CO9-36-12OG

M36X2

1.1 / 16 "X12

28

33.5

47.8

57.5

36

41

41

1CO9-36-16OG

M36X2

1.5 / 16 "X12

28

33.3

49.8

57.5

36

41

41

1CO9-45-20OG

M45X2

1.5 / 8 "X12

35

39.2

60.7

63

48

50

50

1CO9-52-24OG

M52X2

1.7 / 8 "X12

42

44.8

67.8

70.5

55

60

55

1DO9-14-04OG

M14X1.5

7/16 "X20

6

17.5

32.5

30

14

17

17

63S

1DO9-16-06OG

M16X1.5

9/16 "X18

8

18.7

33.7

33.3

16

19

19

1DO9-18-06OG

M18X1.5

9/16 "X18

10

19.5

36

33.5

19

22

19

1DO9-18-08OG

M18X1.5

3/4 "X16

10

19.5

36

37.5

19

22

24

1DO9-20-08OG

M20X1.5

3/4 "X16

12

19.5

36

37.5

19

24

24

1DO9-22-10OG

M22X1.5

7/8 "X14

14

23

41

44

22

27

27

1DO9-24-10OG

M24X1.5

7/8 "X14

16

24

42.5

46.5

24

30

27

40S

1DO9-30-12OG

M30X2

1.1 / 16 "X12

20

28.3

49.8

53.5

30

36

32

1DO9-36-16OG

M36X2

1.5 / 16 "X12

25

32.8

56.8

57.5

36

46

41

1DO9-42-20OG

M42X2

1.5 / 8 "X12

30

36.2

62.7

59.5

41

50

50

1DO9-52-24OG

M52X2

1.7 / 8 "X12

38

45.8

76.8

70.5

55

60

55

31.5S

Nóta: Sa chás go bhfuil spéis agat an cuibheoir a ordú go hiomlán le fáinne gearrtha agus cnó, is gá iarmhír "RN" a chur isteach i ndiaidh ár gcuid uimh. mar shampla 1CO9-30-120G / RN.


3. Feistis Elbow Inoiriúnaithe 1CG9 / 1DG9

24 dheireadh an choin / Fáinne Graí Inoiriúnaithe In-fáinne + Fáinne Coinneála ISO 1179

1CG4 / 1DG4 do léiriú cruth 45deg uillinn

íomhá015

íomhá016

CUID UIMH.

TRÍ

TUBE OD

TOISÍ

MPa

E

F

D1

l1

L1

L2

S1

S2

S3

1CG9-12-02OG

M12X1.5

G1 / 8 "X28

6

13

28

26.2

11

14

14

31.5L

1CG9-14-04OG

M14X1.5

G1 / 4 "X19

8

15.5

30.5

31.3

14

17

19

1CG9-16-04OG

M16X1.5

G1 / 4 "X19

10

17.5

32.5

32.5

16

19

19

1CG9-16-06OG

M16X1.5

G3 / 8 "X19

10

17.5

32.5

35.8

16

19

22

1CG9-18-06OG

M18X1.5

G3 / 8 "X19

12

19

34

36.8

19

22

22

1CG9-22-08OG

M22X1.5

G1 / 2 "X14

15

22

37

43.2

22

27

27

1CG9-26-08OG

M26X1.5

G1 / 2 "X14

18

25.5

42

46

27

32

27

1CG9-26-12OG

M26X1.5

G3 / 4 "X14

18

25.5

42

49.3

27

32

32

1CG9-30-12OG

M30X2

G3 / 4 "X14

22

29.3

45.8

52

30

36

32

16L

1CG9-30-16OG

M30X2

G1 "X11

22

31.5

48

53

33

36

41

1CG9-36-16OG

M36X2

G1 "X11

28

33

49.8

56

36

41

41

1CG9-36-20OG

M36X2

G1.1 / 4 "X11

28

36

52.8

59

41

41

50

1CG9-45-20OG

M45X2

G1.1 / 4 "X11

35

39.2

60.7

63

48

50

50

1CG9-52-24OG

M52X2

G1.1 / 2 "X11

42

44.8

67.8

68.5

55

60

55

1DG9-14-04OG

M14X1.5

G1 / 4 "X19

6

17.5

32.5

31.3

14

17

19

63S

1DG9-16-04OG

M16X1.5

G1 / 4 "X19

8

18.7

33.7

32.5

16

19

19

1DG9-16-06OG

M16X1.5

G3 / 8 "X19

8

18.7

33.7

35.8

16

19

22

1DG9-18-06OG

M18X1.5

G3 / 8 "X19

10

19.5

36

36.8

19

22

22

1DG9-20-06OG

M20X1.5

G3 / 8 "X19

12

19.5

36

36.8

19

24

22

1DG9-22-08OG

M22X1.5

G1 / 2 "X14

14

23

41

43.2

22

27

27

1DG9-24-08OG

M24X1.5

G1 / 2 "X14

16

24

42.5

43

24

30

27

40S

1DG9-30-12OG

M30X2

G3 / 4 "X14

20

28

49.5

52

30

36

32

1DG9-36-16OG

M36X2

G1 "X11

25

32.8

56.8

56

36

46

41

1DG9-42-20OG

M42X2

G1.1 / 4 "X11

30

36.2

62.7

58

41

50

50

1DG9-52-24OG

M52X2

G1.1 / 2 "X11

38

45.8

76.8

68.5

55

60

55

31.5S

Nóta: Sa chás go bhfuil spéis agat an cuibheoir a ordú go hiomlán le fáinne gearrtha agus cnó, is gá iarmhír "RN" a chur isteach i ndiaidh ár gcuid uimh. mar shampla 1CG9-30-12OG / RN.


4. Feistis Tee Rith ACCH / ADDH inoiriúnaithe

24 deg cón / 24 céim cón / Deireadh Graí inchoigeartaithe O-fáinne ISO 6149 Nó fáinne O-+ fáinne coinneála ISO 9974

íomhá019

íomhá020

CUID UIMH.

TRÍ

D1, D2

O RING

TOISÍ

MPa

E, F

G

TUBE OD

l1, l2

L1, L2

L3

S1

S2, S3

S4

ACCH-12-12-10OG

M12X1.5

M10X1

6

O08.1X1.6

13

28

26.5

11

14

14

31.5L

ACCH-14-14-12OG

M14X1.5

M12X1.5

8

O09.3X2.4

15.5

30.5

32

14

17

17

ACCH-16-16-14OG

M16X1.5

M14X1.5

10

O11.3X2.4

17.5

32.5

34

16

19

19

ACCH-18-18-16OG

M18X1.5

M16X1.5

12

O13.3X2.4

19

34

36

19

22

22

ACCH-22-22-18OG

M22X1.5

M18X1.5

15

O15.3X2.4

22

37

39.5

22

27

24

ACCH-26-26-22OG

M26X1.5

M22X1.5

18

O19.3X2.4

25.5

42

43.5

27

32

27

ACCH-30-30-27OG

M30X2

M27X2

22

O23.5X3.0

29.3

45.8

50

30

36

32

16L

ACCH-36-36-33OG

M36X2

M33X2

28

O29.2X3.0

33.3

49.8

54

36

41

41

ADDH-14-14-12OG

M14X1.5

M12X1.5

6

O09.3X2.4

17.5

32.5

32

14

17

17

63S

ADDH-16-16-14OG

M16X1.5

M14X1.5

8

O11.3X2.4

18.7

33.7

34

16

19

19

ADDH-18-18-16OG

M18X1.5

M16X1.5

10

O13.3X2.4

19.5

36

36

19

22

22

ADDH-20-20-18OG

M20X1.5

M18X1.5

12

O15.3X2.4

19.5

36

37

19

24

24

ADDH-24-24-22OG

M24X1.5

M22X1.5

16

O19.3X2.4

24

42

37.5

24

30

27

ADDH-30-30-27OG

M30X2

M27X2

20

O23.5X3.0

28.3

49.8

50

30

36

32

40S

ADDH-36-36-33OG

M36X2

M33X2

25

O29.2X3.0

32.8

56.8

54

36

46

41

ADDH-42-42-42OG

M42X2

M42X2

30

O38.5X3.0

36.2

62.7

57.2

41

50

50

Nóta: 1. Sa chás go bhfuil spéis agat an cuibheoir a ordú go hiomlán le fáinne gearrtha agus cnó, is gá iarmhír "RN" a chur isteach i ndiaidh ár gcuid uimh. mar shampla ACCH-30-30-27OG / RN.
2. Tá deireadh G ceangailte le calafort ISO 9974-1 agus tá sé ceangailte le calafort ISO 6149-1 gan fáinne a choinneáil.


5. Feistis Tee Rith ACCO / ADDO inoiriúnaithe

24 céim cón / 24 céim cón / Deireadh Graí Inoiriúnaithe O-fáinne ISO 11926

íomhá023

íomhá025


CUID UIMH.

TRÍ

TUBE OD

TOISÍ

MPa

E, F

G

D1, D2

l1, l2

L1, L2

L3

S1

S2, S3

S4

ACCO-12-12-04OG

M12X1.5

7/16 "X20

6

13

28

27.2

11

14

17

31.5L

ACCO-14-14-06OG

M14X1.5

9/16 "X18

8

15.5

30.5

31.8

14

17

19

ACCO-16-16-06OG

M16X1.5

9/16 "X18

10

17.5

32.5

33.3

16

19

19

ACCO-18-18-08OG

M18X1.5

3/4 "X16

12

19

34

37.5

19

22

24

ACCO-22-22-10OG

M22X1.5

7/8 "X14

15

22

37

44

22

27

27

ACCO-26-26-12OG

M26X1.5

1.1 / 16 "X12

18

25.5

42

51

27

32

32

ACCO-30-30-12OG

M30X2

1.1 / 16 "X12

22

29.3

45.8

53.5

30

36

32

16L

ACCO-36-36-16OG

M36X2

1.5 / 16 "X12

28

33.3

49.8

57.5

36

41

41

ACCO-45-45-20OG

M45X2

1.5 / 8 "X12

35

39.2

60.7

63

48

50

50

ADDO-14-14-04OG

M14X1.5

7/16 "X20

6

17.5

32.5

30

14

17

17

63S

ADDO-16-16-06OG

M16X1.5

9/16 "X18

8

18.7

33.7

33.3

16

19

19

ADDO-18-18-06OG

M18X1.5

9/16 "X18

10

19.5

36

33.5

19

22

19

ADDO-20-20-08OG

M20X1.5

3/4 "X16

12

19.5

36

37.5

19

24

24

ADDO-22-22-10OG

M22X1.5

7/8 "X14

14

23

41

44

22

27

27

ADDO-24-24-10OG

M24X1.5

7/8 "X14

16

24

42.5

46.5

24

30

27

40S

ADDO-30-30-12OG

M30X2

1.1 / 16 "X12

20

28.3

49.8

53.5

30

36

32

ADDO-36-36-16OG

M36X2

1.5 / 16 "X12

25

32.8

56.8

57.5

36

46

41

ADDO-42-42-20OG

M42X2

1.5 / 8 "X12

30

36.2

62.7

59.5

41

50

50

Nóta: Sa chás go bhfuil spéis agat an cuibheoir a ordú go hiomlán le fáinne gearrtha agus cnó, is gá iarmhír "RN" a chur isteach i ndiaidh ár gcuid uimh. mar shampla ACCO-30-30-12OG / RN.


6. Feistis Tee Rith ACCG / ADDG inoiriúnaithe

24 deg cón / 24 céim cón / Deireadh Graí Inoiriúnaithe + Fáinne Coinneála ISO 1179

íomhá027

íomhá028

CUID UIMH.

TRÍ

TUBE OD

TOISÍ

MPa

E, F

G

D1, D2

l1, l2

L1, L2

L3

S1

S2, S3

S4

ACCG-12-12-02OG

M12X1.5

G1 / 8 "X28

6

13

28

26.2

11

14

14

31.5
L

ACCG-14-14-04OG

M14X1.5

G1 / 4 "X19

8

15.5

30.5

31.3

14

17

19

ACCG-16-16-04OG

M16X1.5

G1 / 4 "X19

10

17.5

32.5

32.5

16

19

19

ACCG-18-18-06OG

M18X1.5

G3 / 8 "X19

12

19

34

36.8

19

22

22

ACCG-22-22-08OG

M22X1.5

G1 / 2 "X14

15

22

37

43.2

22

27

27

ACCG-26-26-08OG

M26X1.5

G1 / 2 "X14

18

25.5

42

46.5

27

32

27

ACCG-30-30-12OG

M30X2

G3 / 4 "X14

22

29.3

45.8

52

30

36

32

16
L

ACCG-36-36-16OG

M36X2

G1 "X11

28

33.3

49.8

56

36

41

41

ACCG-45-45-20OG

M45X2

G1.1 / 4 "X11

35

39.2

60.7

63

48

50

50

ADDG-14-14-04OG

M14X1.5

G1 / 4 "X19

6

17.5

32.5

31.3

14

17

19

63S

ADDG-16-16-04OG

M16X1.5

G1 / 4 "X19

8

18.7

33.7

32.5

16

19

19

ADDG-18-18-06OG

M18X1.5

G3 / 8 "X19

10

19.5

36

36.8

19

22

22

ADDG-20-20-06OG

M20X1.5

G3 / 8 "X19

12

19.5

36

36.8

19

24

22

ADDG-22-22-08OG

M22X1.5

G1 / 2 "X14

14

23

41

43.2

22

27

27

ADDG-24-24-08OG

M24X1.5

G1 / 2 "X14

16

24

42.5

44

24

30

27

40S

ADDG-30-30-12OG

M30X2

G3 / 4 "X14

20

28.3

49.8

52

30

36

32

ADDG-36-36-16OG

M36X2

G1 "X11

25

32.8

56.8

56

36

46

41

ADDG-42-42-20OG

M42X2

G1.1 / 4 "X11

30

36.2

62.7

58

41

50

50

Nóta: Sa chás go bhfuil spéis agat an cuibheoir a ordú go hiomlán le fáinne gearrtha agus cnó, is gá iarmhír "RN" a chur isteach i ndiaidh ár gCuid Uimh. Mar shampla ACCG-18-18-06OG / RN.


7. Feistis Tee Brainse ACHC / ADHD inoiriúnaithe

24 cón deg / Deireadh Graí Inoiriúnaithe O-fáinne ISO 6149 nó O-fáinne + Fáinne Coimeádta ISO 9974/24 deg cón

íomhá031

íomhá032


CUID UIMH.

TRÍ

D1, D2

O-Ring

TOISÍ

MPa

E, G

F

TUBE OD

l1, l2

L1, L2

L3

S1

S2, S4

S3

ACHC-12-10-12OG

M12X1.5

M10X1

6

O08.1X1.6

13

28

26.5

11

14

14

31.5L

ACHC-14-12-14OG

M14X1.5

M12X1.5

8

O09.3X2.4

15.5

30.5

32

14

17

17

ACHC-16-14-16OG

M16X1.5

M14X1.5

10

O11.3X2.4

17.5

32.5

34

16

19

19

ACHC-18-16-18OG

M18X1.5

M16X1.5

12

O13.3X2.4

19

34

36

19

22

22

ACHC-22-18-22OG

M22X1.5

M18X1.5

15

O15.3X2.4

22

37

39.5

22

27

24

ACHC-26-22-26OG

M26X1.5

M22X1.5

18

O19.3X2.4

25.5

42

43.5

27

32

27

ACHC-30-27-30OG

M30X2

M27X2

22

O23.5X3.0

29.3

45.8

50

30

36

32

16

ACHC-36-33-36OG

M36X2

M33X2

28

O29.2X3.0

33.3

49.8

54

36

41

41

ADHD-14-12-14OG

M14X1.5

M12X1.5

6

O09.3X2.4

17.5

32.5

32

14

17

17

63S

ADHD-16-14-16OG

M16X1.5

M14X1.5

8

O11.3X2.4

18.7

33.7

34

16

19

19

ADHD-18-16-18OG

M18X1.5

M16X1.5

10

O13.3X2.4

19.5

36

36

19

22

22

ADHD-20-18-20OG

M20X1.5

M18X1.5

12

O15.3X2.4

19.5

36

37

19

24

24

ADHD-24-22-24OG

M24X1.5

M22X1.5

16

O19.3X2.4

24

42

37.5

24

30

27

ADHD-30-27-30OG

M30X2

M27X2

20

O23.5X3.0

28.3

49.8

50

30

36

32

40S

ADHD-36-33-36OG

M36X2

M33X2

25

O29.2X3.0

32.8

56.8

54

36

46

41

ADHD-42-42-42OG

M42X2

M42X2

30

O38.5X3.0

36.2

62.7

57.2

41

50

50

Nóta: 1. Sa chás go bhfuil spéis agat an cuibheoir a ordú go hiomlán le fáinne gearrtha agus cnó, is gá iarmhír "RN" a chur isteach i ndiaidh ár gcuid uimh. mar shampla ACHC-30-27-30OG / RN.
2. Tá deireadh F ceangailte le ISO 9974-1port agus tá sé ceangailte le calafort ISO 6149-1 gan fáinne a choinneáil.


8. Feistis Tee Brainse ACOC / ADOD inchoigeartaithe

24 cón deg / Deireadh Graí Inoiriúnaithe O-fáinne ISO 11926/24 cón deg

íomhá035

íomhá036

CUID UIMH.

TRÍ

TUBE OD

TOISÍ

MPa

E, G

F

D1, D2

l1, l2

L1, L2

L3

S1

S2, S4

S3

ACOC-12-04-12OG

M12X1.5

7/16 "X20

6

13

28

27.2

11

14

17

31.5L

ACOC-14-06-14OG

M14X1.5

9/16 "X18

8

15.5

30.5

31.8

14

17

19

ACOC-16-06-16OG

M16X1.5

9/16 "X18

10

17.5

32.5

33.3

16

19

19

ACOC-18-08-18OG

M18X1.5

3/4 "X16

12

19

34

37.5

19

22

24

ACOC-22-10-22OG

M22X1.5

7/8 "X14

15

22

37

44

22

27

27

ACOC-26-12-26OG

M26X1.5

1.1 / 16 "X12

18

25.5

42

51

27

32

32

ACOC-30-12-30OG

M30X2

1.1 / 16 "X12

22

29.3

45.8

53.5

30

36

32

16L

ACOC-36-16-36OG

M36X2

1.5 / 16 "X12

28

33.3

49.8

57.5

36

41

41

ACOC-45-20-45OG

M45X2

1.5 / 8 "X12

35

39.2

60.7

63

48

50

50

ADOD-14-04-14OG

M14X1.5

7/16 "X20

6

17.5

32.5

30

14

17

17

63S

ADOD-16-06-16OG

M16X1.5

9/16 "X18

8

18.7

33.7

33.3

16

19

19

ADOD-18-06-18OG

M18X1.5

9/16 "X18

10

19.5

36

33.5

19

22

19

ADOD-20-08-20OG

M20X1.5

3/4 "X16

12

19.5

36

37.5

19

24

24

ADOD-22-10-22OG

M22X1.5

7/8 "X14

14

23

41

44

22

27

27

ADOD-24-10-24OG

M24X1.5

7/8 "X14

16

24

42.5

46.5

24

30

27

40S

ADOD-30-12-30OG

M30X2

1.1 / 16 "X12

20

28.3

49.8

53.5

30

36

32

ADOD-36-16-36OG

M36X2

1.5 / 16 "X12

25

32.8

56.8

57.5

36

46

41

ADOD-42-20-42OG

M42X2

1.5 / 8 "X12

30

36.2

62.7

59.5

41

50

50

Nóta: Sa chás go bhfuil spéis agat an cuibheoir a ordú go hiomlán le fáinne gearrtha agus cnó, is gá iarmhír "RN" a chur isteach i ndiaidh ár gcuid uimh. mar shampla ACOC-30-12-30OG / RN.


9. Feistis Tee Brainse ACGC / ADGD inoiriúnaithe

24 cón deg / Deireadh Graí In-oiriúnaithe O-fáinne + Fáinne Coinneála Cón Deimhnithe ISO 1179/24

íomhá039

íomhá040

CUID UIMH.

TRÍ

TUBE OD

TOISÍ

MPa

E, G

F

D1, D2

l1, l2

L1, L2

L3

S1

S2, S4

S3

ACGC-12-02-12OG

M12X1.5

G1 / 8 "X28

6

13

28

26.2

11

14

14

31.5L

ACGC-14-04-14OG

M14X1.5

G1 / 4 "X19

8

15.5

30.5

31.3

14

17

19

ACGC-16-04-16OG

M16X1.5

G1 / 4 "X19

10

17.5

32.5

32.5

16

19

19

ACGC-18-06-18OG

M18X1.5

G3 / 8 "X19

12

19

34

36.8

19

22

22

ACGC-22-08-22OG

M22X1.5

G1 / 2 "X14

15

22

37

43.2

22

27

27

ACGC-26-08-26OG

M26X1.5

G1 / 2 "X14

18

25.5

42

46.5

27

32

27

ACGC-30-12-30OG

M30X2

G3 / 4 "X14

22

29.3

45.8

52

30

36

32

16L

ACGC-36-16-36OG

M36X2

G1 "X11

28

33.3

49.8

56

36

41

41

ACGC-45-20-45OG

M45X2

G1.1 / 4 "X11

35

39.2

60.7

63

48

50

50

ADGD-14-04-14OG

M14X1.5

G1 / 4 "X19

6

17.5

32.5

31.3

14

17

19

63S

ADGD-16-04-16OG

M16X1.5

G1 / 4 "X19

8

18.7

33.7

32.5

16

19

19

ADGD-18-06-18OG

M18X1.5

G3 / 8 "X19

10

19.5

36

36.8

19

22

22

ADGD-20-06-20OG

M20X1.5

G3 / 8 "X19

12

19.5

36

36.8

19

24

22

ADGD-22-08-22OG

M22X1.5

G1 / 2 "X14

14

23

41

43.2

22

27

27

ADGD-24-08-24OG

M24X1.5

G1 / 2 "X14

16

24

42.5

44

24

30

27

40S

ADGD-30-12-30OG

M30X2

G3 / 4 "X14

20

28.3

49.8

52

30

36

32

ADGD-36-16-36OG

M36X2

G1 "X11

25

32.8

56.8

56

36

46

41

ADGD-42-20-42OG

M42X2

G1.1 / 4 "X11

30

36.2

62.7

58

41

50

50

Nóta: Sa chás go bhfuil spéis agat an cuibheoir a ordú go hiomlán le fáinne gearrtha agus cnó, is gá iarmhír "RN" a chur isteach i ndiaidh ár gcuid uimh. mar shampla ACGC-18-06-18OG / RN.


Clibeanna Te: Feistis DIN inchoigeartaithe, an tSín, monaróirí, soláthróirí, saincheaptha, práis, seaclas, Parker, Stauff, Brennan, cruach dhosmálta

B’fhéidir gur mhaith leat freisin
Glaoigh Linn
Catagóirí
Táirgí is Déanaí
Glaoigh orainn

(0/10)

clearall
